TRAVELLER DESTINATION CRUISE
CHASSIS SPECIFICATIONS
6 A-Frame
6 Main Frame
50mm Ball Coupling
Single Aluminium Pull Out Step
ALKO Australian Designed, Engineered and Manufactured Chassis
63 mm Solid Straight Axles - Heavy Duty
ALKO Suspension AL-KO 7 leaf with 12 electric brakes (single axle vans)
ALKO Suspension AL-KO leaf Rocker Roller with 10 electric brakes (Tandem axle vans)
16 Alloy Wheels with 245/75/R16 with show star satin black rims
One piece composite floor (no water damage risk)

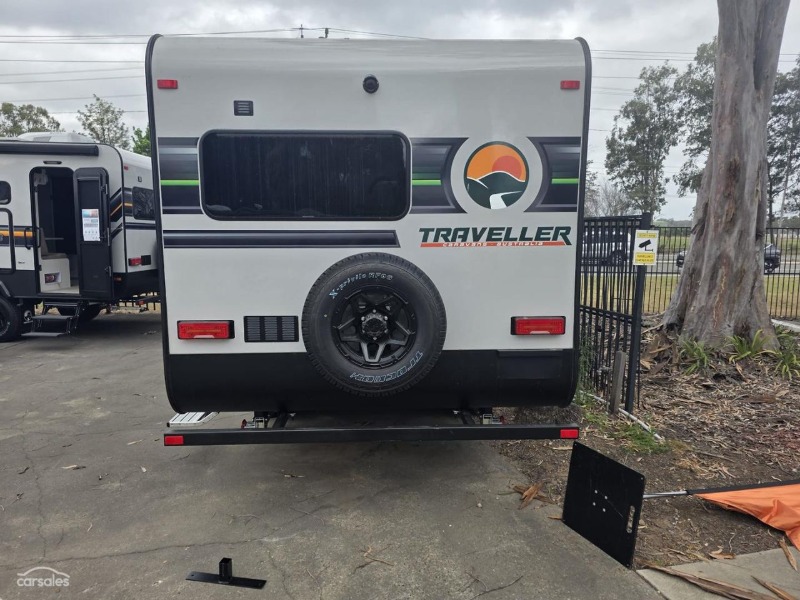

Spare Wheel mounted to the rear wall 9saves storage length)
2 Arm Bumper Bar
PLUMBING
Tap on A-Frame

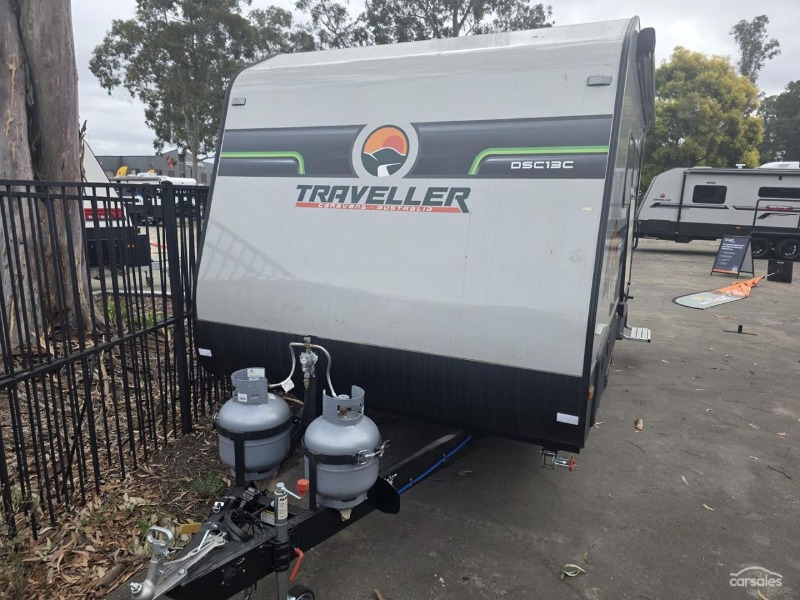

2 x 9kg Gas Bottles
1 x 110 Ltr Fresh Water Tank with pump
HWS - Gas Instantaneous Fogatti
Dometic Cassette Toilet
Black tapware (YOUR CHOISE AT NO COST)
Mains Pressure Inlet
Black Shower Door Black Rose & Flip Mixer (YOUR CHOISE AT NO COST)
Traditional Water Filler - lockable
Gas Bayonet & Hose
One Piece fibreglass Shower Mould
12 Volt pump - Chassis mounted
EXTERNAL FEATURES

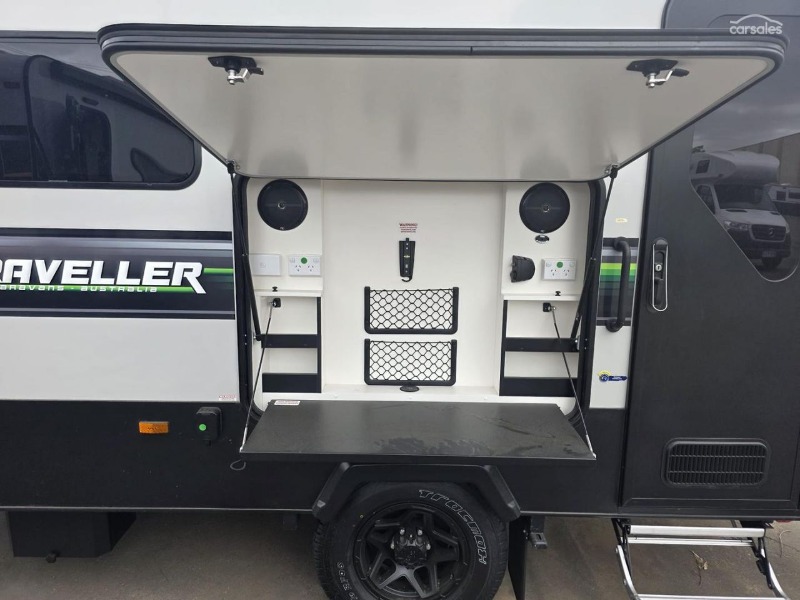

Outdoor leisure & entertainment hatch
ABS Lined Front Tunnel Boot
One Piece Sandwich Panel Composite Roof (Hail Resistant)
One Piece Composite Floor
Hail Resistant Composite Panel On Sides, Front And Rear
Textured Lower Sides, Front And Rear
Security Lock Entry Door
Double glazed windows with block out internal blinds
Led lights in the roof hatches
2 x Ensuite Hatches with fans
Rope track on the driver's side top edge (shade cloth provisions)
External Assistance Entering Grab Handle
ELECTRICAL
12 Pin Flat Tow Plug
50 Amp Anderson plug
1 x 200 Watt Solar Panel
2 x 100 AMP Lithium battery
Projecta PM335C - 30A AC Charger battery management system
30A MPPT Solar Controller
7 Blue tooth Tough screen Display
TV Antenna - Englaon Omni HDTV
Boot Light
Outdoor leisure / entertainment hatch
Annex Lights Both Door Side & Road Side
Reverse Camera with Car Kit (Safety Dave Brand)
Plug & play Looming Electrical System
USB Combo/Reading Lights in Master Bedroom, Seating Area
NCE Multimedia Player (Single Din)
Wireless Charging Pad in Outdoor Leisure Hatch x1
2 x Internal Speakers Black, 2x External Speakers Black
Led strip Lighting (Above/Under All O/H's)
INTERNAL FEATURES
Cabinetry Hardware - Black or Brushed Nickel (Lock Handles, Hooks & Grab Handle)
Recessed Cooktop
Soft Close OHC Hinges
Overlay Doors c/w LED Pelmet & Benchtop Lighting in OHC's
Pocket Board 3 Horizontal 500W x 350H One Pocket Above Lounge
Straight Lounge Moulded Foam Back Upholstery
Internal Cables neatly hidden in channel system
et leading interlocking CNC cut furniture. Cut to .0001mm precision.
Premium Vinyl Flooring
Full Height Splashback
Queen Bed Innerspring Mattress
Dual Stage Draw Runners
Shell Grip Lock safe Handles
Towel Rail, Toilet Roll Holder and Towel Ring
APPLIANCES
Cooktop - Dual Fuel Mini Grill 3 x Gas 1 x Electric Dometic
Rangehood Black c/w LED Touch Screen Display
NCE 24 SMART TV c/w Bracket & Points x1
Dometic 2 Burner Portable Outdoor Cooktop
HWS - Gas Instantaneous Fogatti
Fridge - Dometic RCD10.5XES 200L Compressor
Air Conditioner (Gree) 3.5kw
Microwave Flatbed c/w Black Fascia Surround
Plated van weights as follows
5 Year structural chassis warranty
3 Year manufacturer's warranty
Appliance warranty as per individual products (minimum 12 months)
This van will come with workshop check, registration transfers plus an in-depth personalised handover & hook up lesson. All on road costs inclusive of sale.
(Disclaimer- Whilst we do our best to cover all specifications in our advertisements all buyers are encouraged to confirm the listed specifications prior to purchasing. Our write ups are a guide only - Our vans are sold as displayed)
